System Architect 2027 – Version 11.4.14 –
provides the following
enhancements:
|
|
|
| |
|
Frameworks – Support for ArchiMate 4:
System Architect now supports ArchiMate 4, which is the latest version of the ArchiMate specification, finalized by The Open Group in April, 2026.
With ArchiMate 4, The Open Group streamlined the specification, and introduced new core concepts to more readily enable the modeling of Artificial
Intelligence (AI) agents and Human interactions. System Architect also provides support for a new interactive ArchiMate 4 Framework Browser,
and an ArchiMate Value Stream viewpoint.
In addition, ArchiMate modeling is now available to users as part of the base price of System Architect. If you wish to use ArchiMate support,
please ask your sales associate to modify your license to include the ArchiMate add-on.
|
|
|
| |
|
|
|

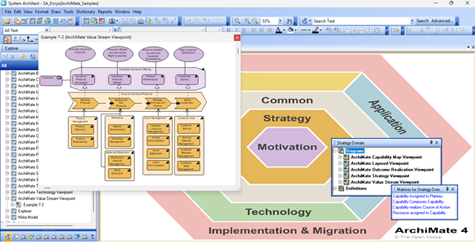

Interactive ArchiMate 4 Framework Browser in System Architect 2027, with an ArchiMate 4 Value Stream diagram open in an external window |
|
|
|
|
Usability – Dialogs Can Now Be Stretched: In a major usability enhancement,
all dialogs in System Architect can now be stretched, with fonts resized accordingly. This encompasses menu dialogs
and all diagram, definition, and symbol property dialogs, including user property customizations set by usrprops.txt.
The stretching is enabled by default but can be turned off. See the help topic "Customizing Dialog Sizes".
|
|
|
|
|
Usability – Display Properties Completely Outside Symbols: Displayable properties
can now be configured to be presented outside of node and line symbols, via a new option in the Text Position dialog.
|
|
|
|
|
• |
You may save this setting for all new symbols in the Text Style option of the Symbol Style menu. |
|
|
|
• |
These text regions will get auto sized if so configured by options in the Display Mode dialog and the Preferences dialog. |
|
|
|
|
Usability – Modernized Customize Method Support dialog: The Customize Method Support
dialog (otherwise known as System Architect Property Configuration dialog) has been modernized with new tabs and
easier-to-understand categorizations.
|
|
|
|
|
• |
A new choice is provided in the dialog to have changes applied to all future encyclopedias. |
|
|
|
• |
The changes made are stored in an usradv.cfg file, which can be copied on encyclopedia creation. |
|
|
|
• |
A new Show All Options checkbox enables the older format of options to be presented. The two views are synchronized. |
|
|
|
|
Usability – Modernized Preferences dialog:
The Tools, Preferences dialog has been modernized with new tabs and easier-to-understand categorizations.
|
|
|
|
|
Usability – Modernized Session Options dialog:
The Session Options dialog has been modernized with entries now grouped into categories.
|
|
|
| |
|
SA XT Diagramming – Displayable Properties: You may now visualize displayable
properties in SA XT. This includes the new feature of being able to display properties completely outside the symbol.
|
|
|
|
|
• |
The BORDER keyword configurations and the notation font are used. |
|
|
|
• |
You can control displayable properties by a new Display Mode dialog. |
|
|
|
• |
As in System Architect rich client, AutoSize of nodes is supported. It is activated by combination of options
in the Display Mode dialog and Preferences dialog. |
|
|
|
• |
Preferences are stored in catalog data, unique for each user. |
|
|
| |
|
SA XT Diagramming – Run Analytics & Explorer Object & Relationship Reports:
You may now run analytics and Explorer Object and Relationship reports by drag-and-dropping them via Choices in SA XT.
|
|
|
| |
|
SA REST API Supports CORS Header for Multiple Allowed Hosts:
The SA REST service configuration now allows multiple CORS hosts for making script-based calls to the REST Service.
Hosts may be entered in the SA REST Configuration Wizard's CORS Access-Control-Allow-Origin setting, or the
SARestWebService.exe.config file, separating the entries by commas. Using this configuration option allows you
to satisfy requirements to avoid CORS (Cross Origin Resource Sharing) errors.
|
|
|
| |
|
Client Issues: A number of client
issues are also fixed, as enumerated and described in the Release
Notes. |
|
|
| |
|
|
| |
|
|
| |
